Create Tiles From WMS Dialog

The raster operation create tiles from wms dialog window allows the user to create a static tile cache from one more OGC WMS service layers.

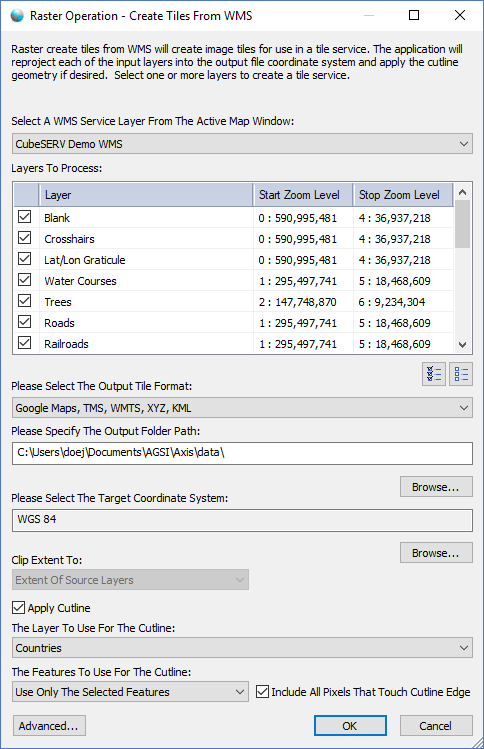

The dialog controls are:

  • Select A WMS Service Layer From The Active Map Window

    A dropdown list control that displays a list of WMS Service layers in the active Map View that can be exported.
  • Layer To Process

    A list control of WMS layers that can be selected for output. The selected layers will be composited into the output tiles in the zoom levels specified between the start and stop zoom level ranges in the respective layer columns. Click in the start and stop level cells next to the layer name to change the cell values.
  • Select All

    When this button is clicked all the layers in the Layers To Process list control will be checked on.

  • Unselect All

    When this button is clicked all the layers in the Layers To Process list control will be checked off.

  • Please Select The Output Tile Format

    A dropdown list control that displays the supported output static tile cache formats.
  • Please Specify The Output Folder Path

    The file or folder path (depending on the Output Tile Format) where the static tile cache should be created.
  • Output Folder Path - Browse

    When clicked a file or folder (depending on the Output Tile Format) browse dialog window is displayed allowing the user to select the output file or folder path.
  • Please Select The Target Coordinate System

    A read-only text box that displays the currently selected target coordinate system. Use the Browse button to change the selection.
  • Target Coordinate System - Browse

    When clicked the Coordinate System Dialog window is displayed allowing the user to select the target coordinate system.
  • Clip Extent To

    A drop down list box that contains a list of clipping options. If a Region Of Interest is defined in the active Map View it will be added as an option in the list.
  • Apply Cutline

    Select this option to apply a cutline to the tile cache. Cutlines are used to null out pixels that are outside the area of one or more geometries.
  • The Layer To Use For The Cutline

    A drop down list box that contains a list of polygon vector layers in the Map View window that can be used as a cutline source for the operation.
  • The Features To Use For The Cutline

    A drop down list box that specifies what features from the selected cutline layer to use for processing. Select "Use All The Features" option to use all the geometries in the layer for the cutline. Select "Use Only The Selected Features" option to only use the features that are selected in the layer for the cutline. Select "Use Only The Visible Features" option to only use the features that are visible in the layer for the cutline.
  • Include All Pixels That Touch The Cutline Edge

    Select this option to include all pixels in the tile cache that intersect or are completely within the interior of the cutline geometry. Pixels that do not intersect the cutline geometry will be nulled out (set to transparent). If this option is not selected then only the pixels that are completely contained within the cutline geometry will be included and partially intersecting pixels will be nulled out.
  • Advanced

    When clicked the Advanced Tile Options Dialog window is displayed allowing the user to specify additional options for the operation.
  • OK

    When this button is clicked the dialog queues the Create Tiles From MBTiles task with the Parallel Processing Server and closes the dialog. Use the Task Pane window to monitor the task progress. A popup balloon window and the Task Pane will alert the user when the task is complete.
  • Cancel

    Closes the dialog window.
