Vector Page

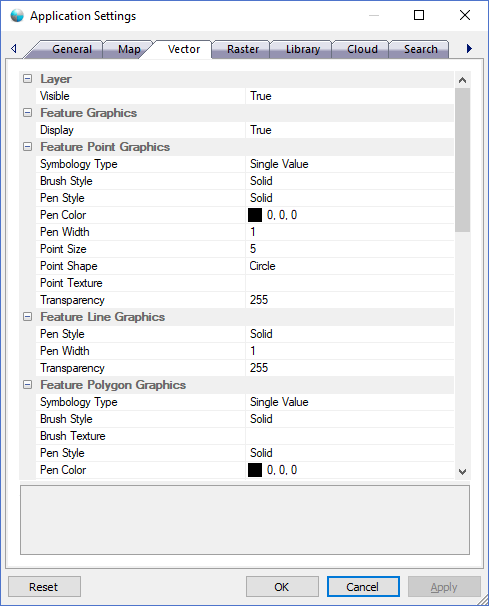

The product settings vector page dialog window allows the user to set default values when adding new vector layers to the map.

The dialog controls are:

Layer

• Visible

  Default value. Show or hides the data source default setting. Use the Display style options to show or hide different style aspects of the data source.

Feature Graphics

• Display

  Default value. If true, the features of the layer will be displayed as a graphics.

Feature Point Graphics

• Symbology Type

  Default value. The symbology type used to brush the feature graphics.
• Brush Style

  Default value. The brush pattern used to display the feature graphics.
• Pen Style

  Default value. The pen pattern used to display the feature graphics.
• Pen Color

  Default value. The pen color of the feature graphics.
• Pen Width

  Default value. The feature graphics pen width.
• Point Size

  Default value. The feature graphics point size.
• Point Shape

  Default value. The feature graphics point shape.
• Point Texture

  Default value. An image file that is used to represent the point graphics.
• Transparency

  Default value. The transparency of the feature graphics. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Feature Line Graphics

• Pen Style

  Default value. The pen pattern used to display the feature graphics.
• Pen Width

  Default value. The feature graphics pen width.
• Transparency

  Default value. The transparency of the feature graphics. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Feature Polygon Graphics

• Symbology Type

  Default value. The symbology type used to brush the feature graphics.
• Brush Style

  Default value. The brush pattern used to display the feature graphics.
• Brush Texture

  Default value. An image file that is used to brush the feature graphics.
• Pen Style

  Default value. The pen pattern used to display the feature graphics.
• Pen Color

  Default value. The pen color of the feature graphics.
• Pen Width

  Default value. The feature graphics pen width.
• Transparency

  Default value. The transparency of the feature graphics. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Coverage Graphics

• Display

  Default value. If true, the coverage area of the layer will be displayed as a graphic.
• Brush Style

  Default value. The brush pattern used to display the coverage graphic.
• Brush Color

  Default value. The brush color of the coverage graphic.
• Brush Texture

  Default value. An image file that is used to brush the coverage graphic.
• Pen Style

  Default value. The pen pattern used to display the coverage graphic.
• Pen Color

  Default value. The pen color of the coverage graphic.
• Pen Width

  Default value. The coverage graphic pen width.
• Transparency

  Default value. The transparency of the coverage graphic. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Label Graphics

• Display

  Default value. If true, a label for each of the layer features will be displayed as a graphic.
• Background

  Default value. If true, a background graphic will be displayed behind the label text.
• Font

  Default value. The font characteristics for the label text.
• Italic

  Default value. If true, the label text will be italic or slanted.
• Underline

  Default value. If true, the label text will be underlined.
• Strikeout

  Default value. If true, the label text will have a line through the middle.
• Text Color

  Default value. The text color of the label.
• Brush Style

  Default value. The brush pattern used to display the background graphic.
• Brush Color

  Default value. The label graphic brush color.
• Brush Texture

  Default value. An image file that is used to brush the background graphic.
• Pen Style

  Default value. The pen pattern used to display the background graphic.
• Pen Color

  Default value. The pen color of the background graphic.
• Pen Width

  Default value. The background pen width.
• Transparency

  Default value. The transparency of the label graphics. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Selection Graphics

• Display

  Default value. If true, a selection graphic will be displayed for each of the selected features in the layer when using the selection tool.
• Brush Style

  Default value. The brush pattern used to display the selection graphics.
• Brush Color

  Default value. The brush color of the selection graphics.
• Brush Texture

  Default value. An image file that is used to brush the selection graphics.
• Pen Style

  Default value. The pen pattern used to display the selection graphics.
• Pen Color

  Default value. The pen color of the selection graphics.
• Pen Width

  Default value. The selection graphics pen width.
• Transparency

  Default value. The transparency of the selection graphics. The range is 0 to 255 where 0 is completely transparent and 255 is completely opaque.

Buttons

• Reset

  When this button is clicked the dialog resets all properties on the current page to the original values that were present after product installation.
• OK

  When this button is clicked all properties on the dialog pages are saved and the dialog window is closed.
• Cancel

  Closes the dialog window.
• Apply

  When this button is clicked all properties on the dialog pages are saved but the dialog window is not closed.
