Convert Palette To RGB Dialog

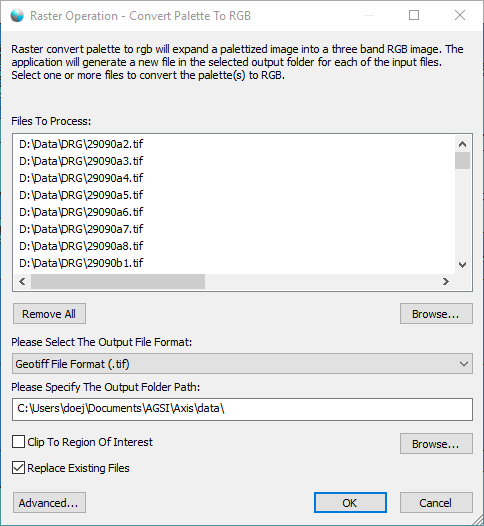

The raster operation convert palette to rgb dialog window allows the user to convert one or more geospatial imagery files with a palette (color table) to a three band rgb (red, green, blue) file.

The dialog controls are:

• Files To Process

  A list of one or more geospatial imagery files that have palettes that the user wants to convert into a RGB file.
• Remove All

  When this button is clicked all the file paths are removed from the list.
• List - Browse

  When this button is clicked a file select dialog is displayed for the user to select one or more geospatial imagery files with palettes to be added to the list.
• Please Select The Output File Format

  A dropdown list control that displays the supported output file formats.
• Please Specify The Output Folder Path

  The directory path where the new, converted image files should be created. A new image with the same name as the original will be created in the output folder path.
• Output Folder Path - Browse

  When clicked a folder browse dialog window is displayed allowing the user to select the output folder path.
• Clip To Region Of Interest

  Select this option if you want the converted files to be clipped by the Region Of Intereset (ROI) in the map. To use this feature, first define a ROI on the map using one of the ROI tools on the Region Toolbar . The resulting images will be the an image that is the area defined by the intersection of the image bounds and the ROI. Source images that do not intersect the ROI will not be converted.
• Replace Existing Files

  Select this option if existing files in the output folder path with the same file names as the source images should be replaced.
• Advanced

  When clicked the Advanced Raster Options Dialog window is displayed allowing the user to specify additional options for the operation.
• OK

  When this button is clicked the dialog queues the Convert Palette To RGB task with the Parallel Processing Server and closes the dialog. Use the Task Pane window to monitor the task progress. A popup balloon window and the Task Pane will alert the user when the task is complete.
• Cancel

  Closes the dialog window.
