Convert Coordinate System Dialog

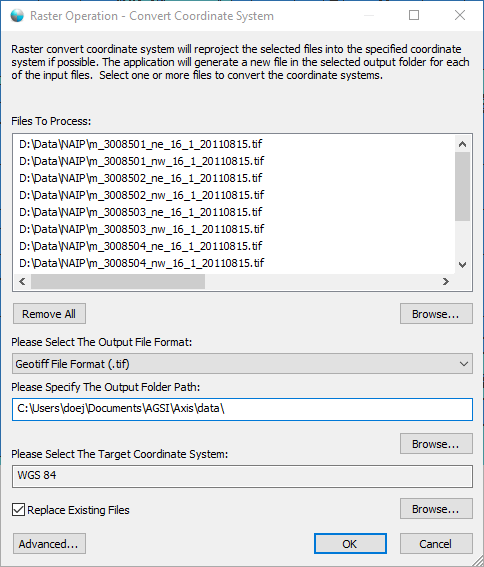

The raster operation convert coordinate system dialog window allows the user to reproject one or more geospatial imagery files to a different spatial reference system.

The dialog controls are:

• Files To Process

  A list of one or more geospatial imagery files that the user wants to reproject into a different coordinate system.
• Remove All

  When this button is clicked all the file paths are removed from the list.
• List - Browse

  When this button is clicked a file select dialog is displayed for the user to select one or more geospatial imagery files to be added to the list.
• Please Select The Output File Format

  A dropdown list control that displays the supported output file formats.
• Please Specify The Output Folder Path

  The directory path where the new, reprojected image files should be created. A new image with the same name as the original will be created in the output folder path.
• Output Folder Path - Browse

  When clicked a folder browse dialog window is displayed allowing the user to select the output folder path.
• Please Select The Target Coordinate System

  A read-only text box that displays the currently selected target coordinate system. Use the Browse button to change the selection.
• Target Coordinate System - Browse

  When clicked the Coordinate System Dialog window is displayed allowing the user to select the target coordinate system.
• Replace Existing Files

  Select this option if existing files in the output folder path with the same file names as the source images should be replaced.
• Advanced

  When clicked the Advanced Raster Options Dialog window is displayed allowing the user to specify additional options for the operation.
• OK

  When this button is clicked the dialog queues the Convert Coordinate System task with the Parallel Processing Server and closes the dialog. Use the Task Pane window to monitor the task progress. A popup balloon window and the Task Pane will alert the user when the task is complete.
• Cancel

  Closes the dialog window.
