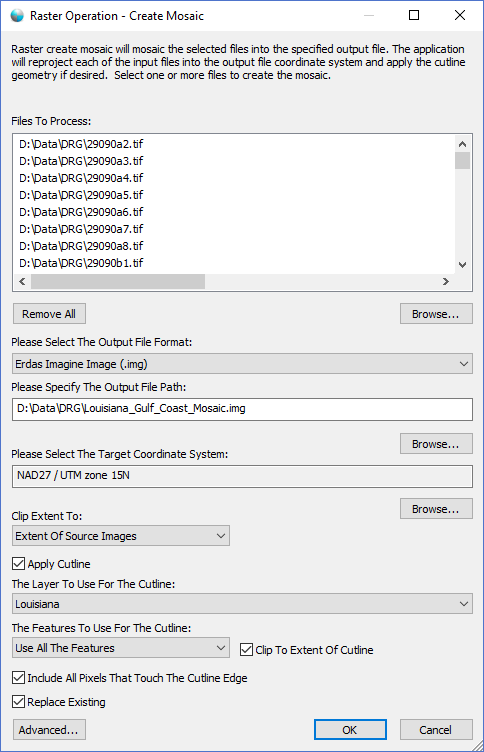

Create Mosaic Dialog

The raster operation create mosaic dialog window allows the user to mosaic one or more source images into a single output image.

The dialog controls are:

• Files To Process

  A list of one or more geospatial imagery files that the user wants to mosaic together.
• Remove All

  When this button is clicked all the file paths are removed from the list.
• List - Browse

  When this button is clicked a file select dialog is displayed for the user to select one or more geospatial imagery files to be added to the list.
• Please Select The Output File Format

  A dropdown list control that displays the supported output file formats.
• Please Specify The Output File Path

  The file path where the new mosaic image file should be created.
• Output File Path - Browse

  When clicked a file browse dialog window is displayed allowing the user to select the output file name and path.
• Please Select The Target Coordinate System

  A read-only text box that displays the currently selected target coordinate system. Use the Browse button to change the selection.
• Target Coordinate System - Browse

  When clicked the Coordinate System Dialog window is displayed allowing the user to select the target coordinate system.
• Apply Cutline

  Select this option to apply a cutline to the output mosaic. Cutlines are used to null out pixels that are outside the area of one or more geometries.
• The Layer To Use For The Cutline

  A drop down list box that contains a list of polygon vector layers in the Map View window that can be used as a cutline source for the operation.
• The Features To Use For The Cutline

  A drop down list box that specifies what features from the selected cutline layer to use for processing. Select "Use All The Features" option to use all the geometries in the layer for the cutline. Select "Use Only The Selected Features" option to only use the features that are selected in the layer for the cutline. Select "Use Only The Visible Features" option to only use the features that are visible in the layer for the cutline.
• Clip To Extent Of Cutline

  Select this option to clip the extent of the output image to the extents of the cutline geometry. If this option is not selected then the resulting output image will use the extent of the source image.
• Include All Pixels That Touch The Cutline Edge

  Select this option to include all pixels in the output image that intersect or are completely within the interior of the cutline geometry. Pixels that do not intersect the cutline geometry will be nulled out (set to transparent). If this option is not selected then only the pixels that are completely contained within the cutline geometry will be included and partially intersecting pixels will be nulled out.
• Replace Existing

  Select this option if the output file should be replaced if it already exists.
• Advanced

  When clicked the Advanced Raster Options Dialog window is displayed allowing the user to specify additional options for the operation.
• OK

  When this button is clicked the dialog queues the Create Mosaic task with the Parallel Processing Server and closes the dialog. Use the Task Pane window to monitor the task progress. A popup balloon window and the Task Pane will alert the user when the task is complete.
• Cancel

  Closes the dialog window.
