Deploy a Shared Library

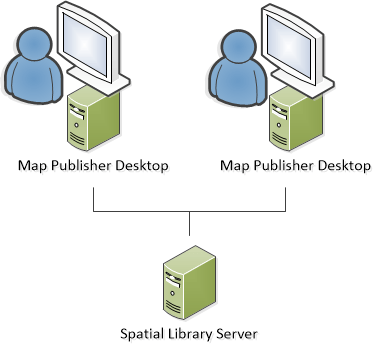

Deploying Spatial Library Server as a shared library assumes you want to run Map Publisher Desktop on one or more machines and the Spatial Library Server on a single machine. This is a good strategy if you have many users that need access to the same data. Users can still maintain personal libraries by running Spatial Library Server on their personal workstations while simulataneously accessing the data on the shared server.

Download the installer package (MSI) for Map Publisher Professional from https://lcic.xyz/ if you don;t already have it. The installer package for 64 bit computers it is named axis-pro-map-publisher-100-x64.msi .

Spatial Library Server Computer Installation

Step 1

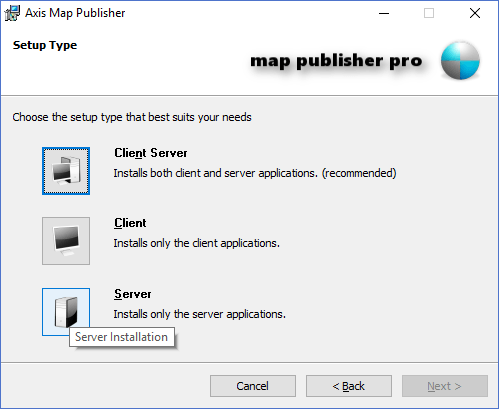

Run the installer package and select the "Server" option in the "Setup Type " wizard page as shown below. This option selects the most commonly used application components for server computer use.

Step 2

On the "Feature Selection" page unselect the "Parallel Processing Server" and "Enterprise Map Server " options as shown below.

Step 3

Finish the installation.

---

Map Publisher Desktop Computer Installation

Step 1

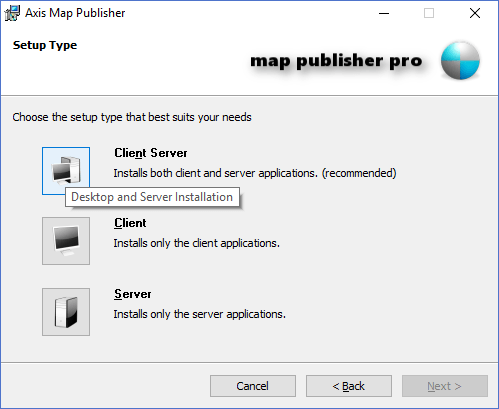

Run the installer package and select the "Client Server" option in the "Setup Type " wizard page as shown below. This option selects the most commonly used application components for single computer use.

Step 2

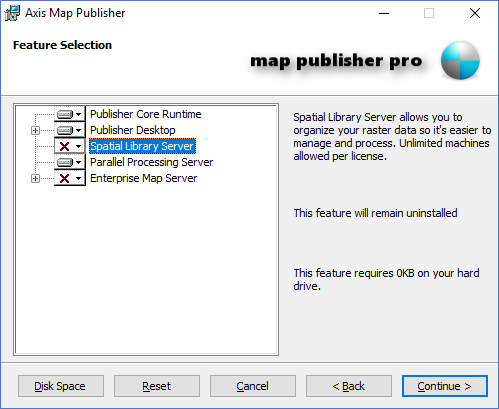

On the "Feature Selection" page unselect the "Spatial Library Server " option as shown below if you don't want a personal library installed.

Step 3

Finish the installation.

Step 4

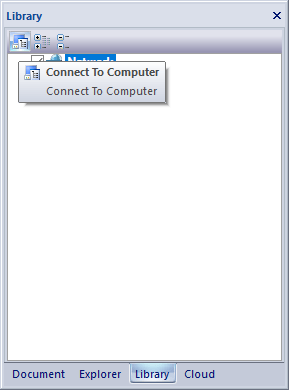

Run the Map Publisher Desktop application that was just installed in the last step and click the "Connect To Computer" toolbar button in the Library Docking Window to display the Library Server Dialog as shown below.

Step 5

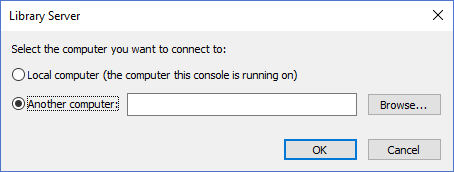

In the Library Server Dialog window select the "Another computer" radio button and then use the "Browse" button or type in the text box the name of the computer where you installed Spatial Library Server and then click the "OK " button. The Library Server dialog will attempt to connect to the Spatial Library Server on the machine specified. If the dialog fails to connect to the remote server, go to the remote computer and validate that the Spatial Library Server installation succeeded and that all the services are running.

If the connection succeeded you are ready to start utilizing the library service with Map Publisher Desktop. For more information on how to utilize Spatial Library Server using Map Publisher Desktop please see Importing and Viewing Data .
